Specification​s

Lens Configuration

MTF Chart

Vertical axis : Contrast
Horizontal axis : Distance from the center of the image
S : Sagittal
M : Meridional

Wide

Spatial frequency 15 lines/mm

Spatial frequency 45 lines/mm

Telephoto

Spatial frequency 15 lines/mm

Spatial frequency 45 lines/mm

Specifications

Type

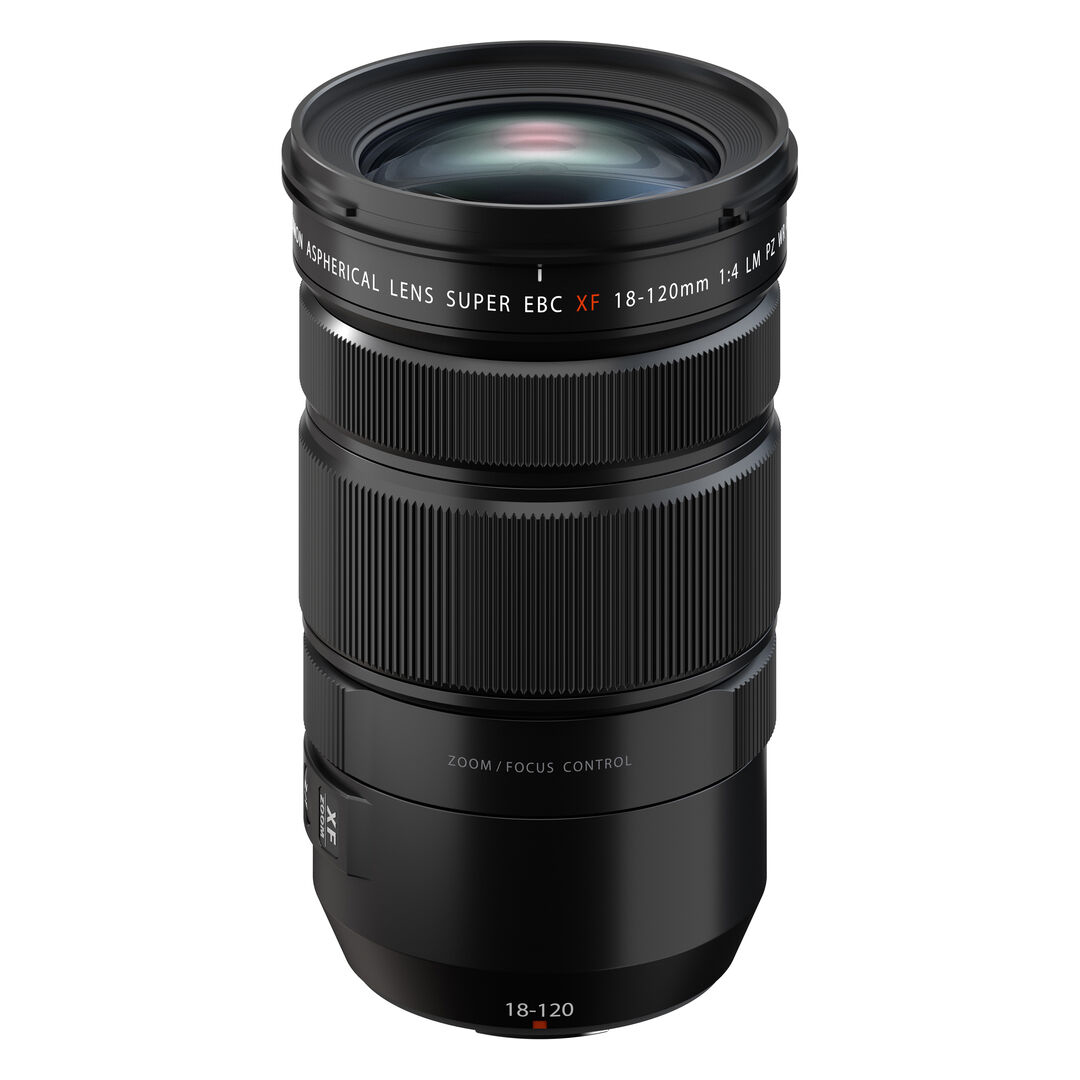

XF18-120mmF4 LM PZ WR

Lens configuration
15 elements in 12 groups(includes 3 aspherical and 3 ED elements)

Focal length
f=18-120mm(27-183mm)

Angle of view
76.5°-13.5°

Max. aperture
F4

Min. aperture
F22

Aperture control


Number of blades
7(rounded diaphragm opening)


Step size
1/3EV (16steps)

Minimum focus distance(mesured from focal plane)
0.6m

Max. magnification
T:0.2x

External dimensions : Diameter x Length*1 (approx.)
Ø77.3mm×123.5mm

Weight*2 (approx.)
460g

Filter size
Ø72mm

Accessories included
Front lens cap FLCP-72 IIRear lens cap RLCP-001Lens hoodLens wrapping cloth

NOTES

*1 distance from camera lens mount flange
*2 excluding caps and hoods
